ECHO launch CSG-7410ES

POWERFULLY CUTS CONCRETE AND METAL WITH EASE

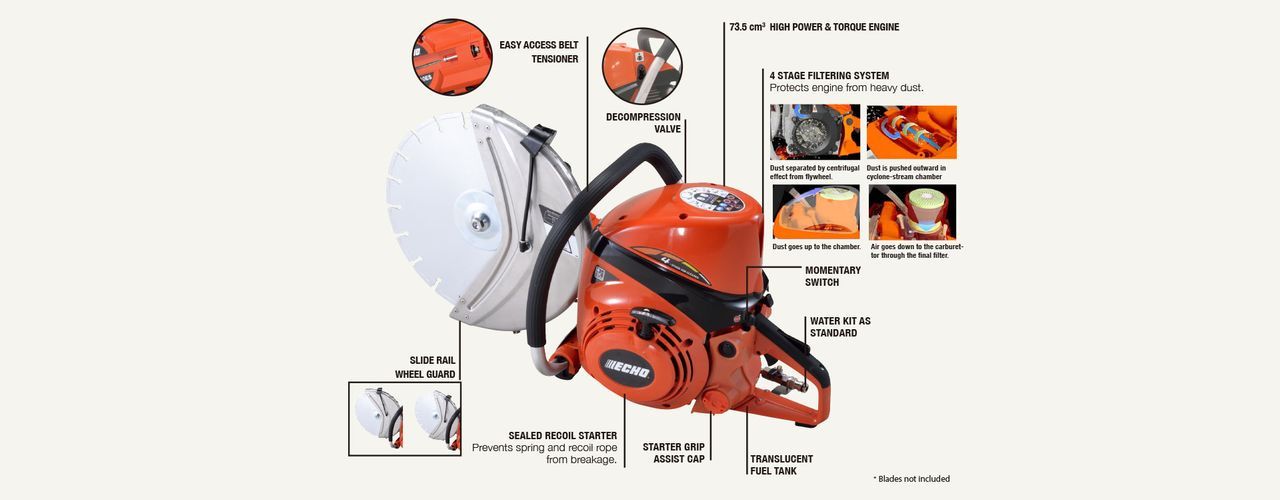

FEATURES & BENEFITS

<POWER AND DURABILITY>

// 73.5 cm3 professional-grade, 2-stroke engine provides categoryleading cutting performance for better work efficiency.

// Without catalyst new stratified 2-stroke engine enables same emission level as the conventional engine.


<SUITABLE FOR HEAVY DUST CONDITIONS>

// Four-stage air filtration system protects engine from harmful dust ingestion.

// Sealed recoil starter prevents spring and recoil rope from breakage.

// Standardised water kit prevents dust entering the engine.


<USER-FRIENDLY >

// Momentary switch for quick and easy engine restart.

// ES-start and decompression valve for easier starting.

// Translucent fuel tank for easy level checks.


--- SPEC ---

Engine Displacement (cm3) : 73.5

Dry Weight* (kg) : 10.7

Output (kW/ps) : 3.2/4.4

Fuel Tank Capacity (L) : 0.7

Max Blade Diameter (mm) : 350

Max Cutting Depth (mm) : 125

Water Kit : Standard


* Without cutting blade


Specifications, descriptions, and illustrative materials in this literature are as accurate as known at the time of publication, but are subject to change without notice.


--- Warranty ---

2 year commercial warranty not available in all markets.

Check with your dealer for details.

For your safety, use appropriate protective gear in the working environment.
