With a lightweight and durable body, the saw has an excellent power-to-weight ratio and a dry weight of 5.0kg

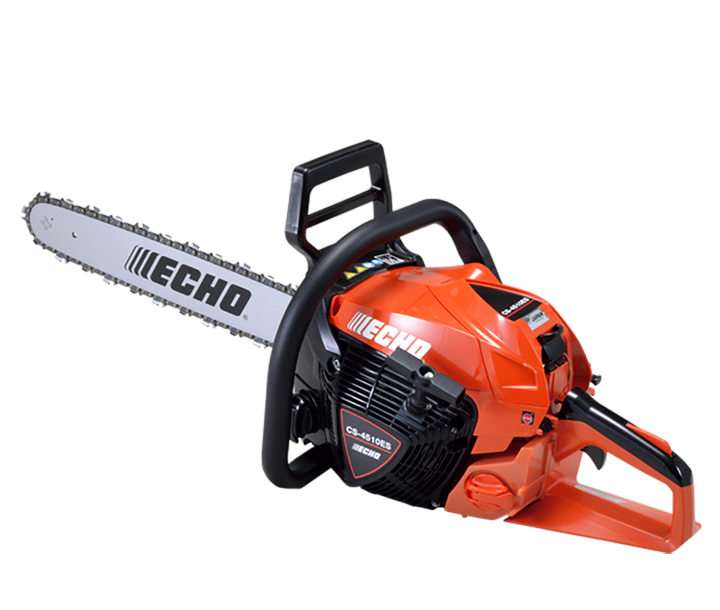

CS-4510ES
Rear handle professional chain saw that exceeds expectations. Featuring a powerful 45cc engine and weighing only 5kg, this robust saw will see you through any job.
A$829.00

Scroll

Professional engine
45.0 cm3 professional-grade, 2-stroke engine provides category-leading cutting performance for better work efficiency.

Ergonomic
Small, lightweight design alongside a powerful engine for a superb power to weight ratio.

Comfortable
Tool-less air filter cover allowing easy air filter access, even when wearing gloves; a side access chain tensioner enabling easy chain adjustment; an anti-icing system preventing the carburettor from freezing in colder months.
Best Features
Power to weight ratio
Super light-weight design with exceptional power.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
Product Details.
Engine displacement (cm³) | 45.0 |
---|---|
Output (kw) | 2.3 |
Output (ps) | 3.1 |
Dry Weight (kg) | 5.0 |
Fuel tank capacity (ml) | 480 |
Chain Oil Tank Capacity (ml) | 330 |
Fuel Consumption At Maximum Engine Power (L/h) | 1.19 |
Priming Pump | Yes |
Ignition System | CDI |
Start Assist System | ES-start |
Chain Brake | Inertia |
Choke w/ Automatic Fast Idle Release | Yes |
Chain Tensioner | Side |
Saw Chain Pitch (inch) | 0.325 |
Guide Bar Gauge (inch) | 0.058 (0.050) |
Applicable Bar Length (cm/inch) 1 | 33, 38, 45, 50 / 13, 15, 18, 20 |
Sound pressure level (dB(A)) | 100.2 |
Sound power level (dB(A)) | 111.9 |
CO² (g/kW・h) 2 | 803 |
Vibration Front handle/Rear handle (m/s²) | 2.6 / 2.8 |
- 1
- Not all lengths available in every country. Check with your local dealer.
- 2
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
