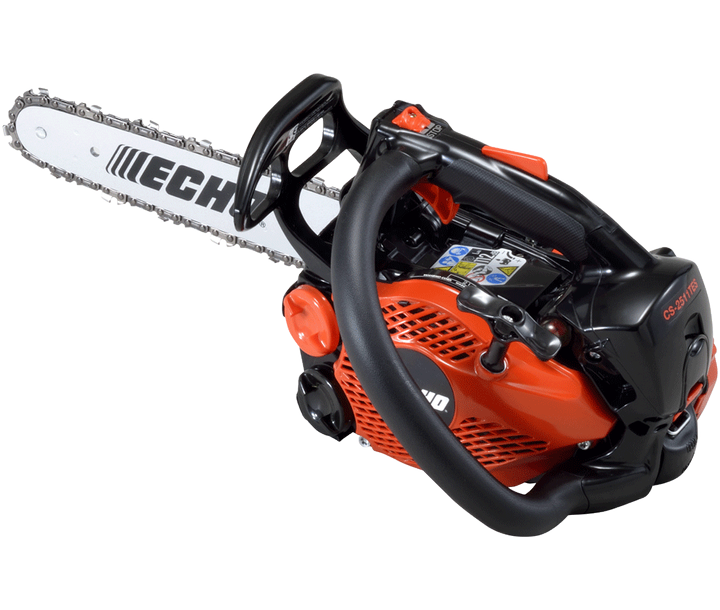

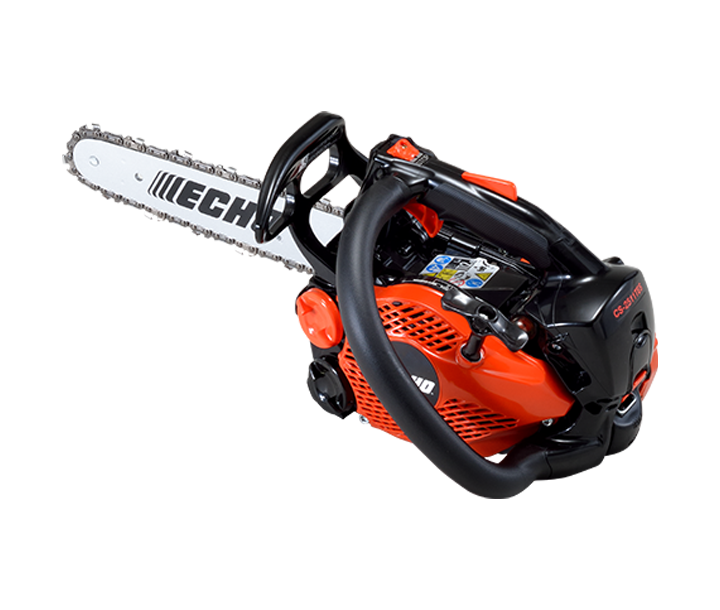

CS-2511TES

Best power to weight ratio on the market and widely considered as the best top handle chain saw. Fitted standard with 10" (25cm) or 12" (30cm) guide bar^.

A$829.00

CS-2511TES
Scroll
scroll

Due to its industry leading power to weight ration and ergonomics, the CS-2511TES has become a favourite with arborists, carvers and foresters around the world. The CS-2511TES C features a carving bar, making it ideal for wood carving and detailing.

Light-weight

Light-weight

Weighing just 2.3kg it's the lightest, most compact chain saw in our range. AUS

Starter grip assist caps

Starter grip assist caps

Starter grip can be used to open the caps manually.

Best Features

Lightweight

Engineered to weigh less whilst retaining robust durability.

Ergonomics

Designed to maximise efficiency and comfort.

Power to weight ratio

Super light-weight design with exceptional power.

Product Details.

Engine displacement (cm³) 25.0
Output (kw) 1.11
Output (ps) 1.51
Dry Weight (kg) 2.3
Fuel Tank Capacity (ml) 190
Chain Oil Tank Capacity (ml) 140
Fuel Consumption At Maximum Engine Power (L/h) 0.68
Priming Pump Yes
Ignition System CDI
Start Assist System ES-start
Chain Brake Inertia
Choke w/ Automatic Fast Idle Release Yes
Chain Tensioner Side
Saw Chain Pitch (inch) 3/8
Guide Bar Gauge (inch) 0.50
Applicable Bar Length (cm/inch) 1 20,25,30/8,10,12
Sound pressure level (dB(A)) 99.7
Sound power level (dB(A)) 110.3
CO² (g/kW・h) 2 961
Vibration Front handle/Rear handle (m/s²) 3.5/4.0
1
^Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
2
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.

Other Features.

Model certified or CE
ES-start
Digital controlled CDI
G-FORCE Engine Air Pre-Cleaner
Optional spike
Side access chain tensioner
Fast Idle

CS-2511TES an Overview
